FXMQ200MFV1

Notes: *1. Specifications are based on the following conditions: • Cooling: Outdoor temp. of 33°CDB, 28°CWB (68% RH), and discharge temp. of 18°CDB. • Heating: Outdoor temp. 0°CDB, -2.9°CWB (50% RH), and discharge temp. of 25°CDB. • Equivalent reference piping length: 7.5 m (0 m horizontal) *2. An intake filter is not supplied, so be sure to install the optional long-life filter or high-efficiency filter. *3. Anechoic chamber conversion value, measured at a point 1.5 m downward from the unit centre. These values are normally somewhat higher during actual operation as a result of ambient conditions. *4. It is possible to connect to the outdoor unit if the total capacity of the indoor units is 50% to 100% of the capacity index of the outdoor unit. *5. Local setting mode is not displayed on the remote controller. • This equipment cannot be incorporated into the remote group control of the VRV system. Options 232 sretliF MODEL FXMQ125MFV1 FXMQ200MFV1 FXMQ250MFV1 Operation remote controller BRC1H63W(K) / BRC1E63 / BRC2E61 DTP401A61 DTP401A62 DCS302CA61 DCS301BA61 DST301BA61 KRP4AA51 lortnoc/noitarepO This unit is intended for the treatment of outdoor air only. Not to be used for maintaining indoor air temperature. Be sure that the discharge airflow will not blow on people directly. Group control of the product and standard indoor units is not supported. A separate remote controller should be connected to individual unit. If the unit is utilised to operate 24 hours a day, maintenance (part replacement, etc.) must be performed periodically. Temperature setting and Power Proportional Distribution (PPD) are not possible even if the intelligent Touch Controller or the intelligent Touch Manager is installed. The remote controller wired to the outdoor-air processing unit must not be set as the master remote controller. Otherwise, when set to “Auto,” the operation mode will switch according to the outdoor air conditions, regardless of the indoor temperature. Central remote controller Unified ON/OFF controller Schedule timer Wiring adaptor for electrical appendices (2) Long-life replacement filter KAF371N140 KAF371N280 Colourimetric method 65% KAF372M140 KAF372M280 High-efficiency filter Colourimetric method 90% KAF373M140 KAF373M280 Filter chamber * KDJ3705L140 KDJ3705L280 Streamer duct chamber BDEZ500A140VE BDEZ500A510VE Drain pump kit KDU30L250VE Adaptor for wiring KRP1B61 Notes: * Filter chamber has a suction-type flange. (Main unit does not.) • Dimensions and weight of the equipment may vary depending on the options used. • Some options may not be usable due to the equipment installation conditions, so please confirm prior to ordering. • Some options may not be used in combination. • Operating sound may increase somewhat depending on the options used. tnempiuqE tnemtaerT riA Air Treatment Equipment Simple touch controller AC adaptor for simple touch controller

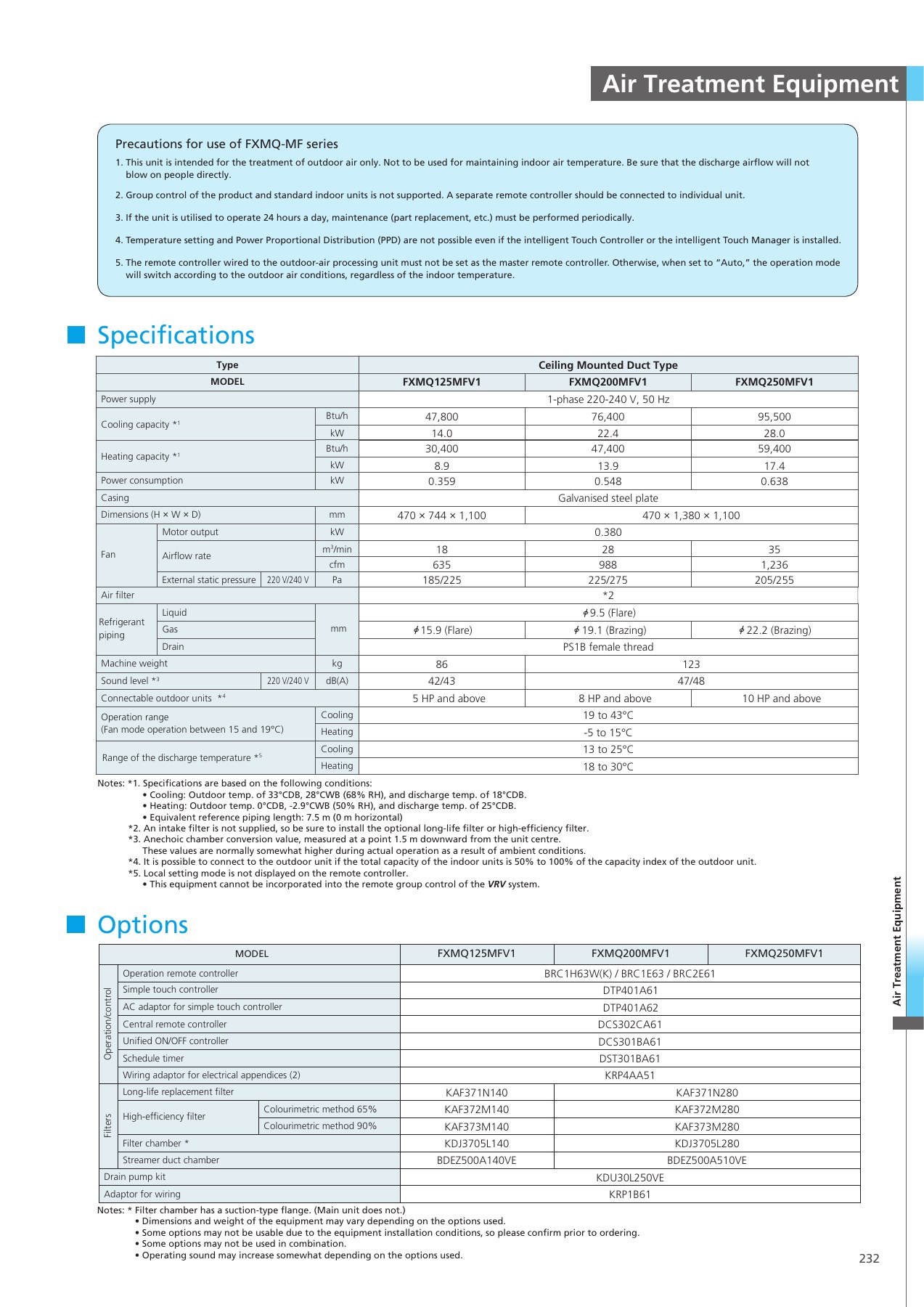

PDF page 233 Precautions for use of FXMQ-MF series 1. 2. 3. 4. 5. Specifications Type Ceiling Mounted Duct Type MODEL FXMQ125MFV1 FXMQ200MFV1 FXMQ250MFV1 Power supply 1-phase 220-240 V, 50 Hz Btu/h 47,800 76,400 95,500 Cooling capacity *1 kW 14.0 22.4 28.0 Btu/h 30,400 47,400 59,400 Heating capacity *1 kW 8.9 13.9 17.4 Power consumption kW 0.359 0.548 0.638 Casing Galvanised steel plate Dimensions (H × W × D) mm 470 × 744 × 1,100 470 × 1,380 × 1,100 Motor output kW 0.380 m3/min 18 28 35 Fan Airflow rate cfm 635 988 1,236 External static pressure 220 V/240 V Pa 185/225 225/275 205/255 Air filter *2 Liquid 9.5 (Flare) Refrigerant Gas mm 15.9 (Flare) 19.1 (Brazing) 22.2 (Brazing) piping Drain PS1B female thread Machine weight kg 86 123 Sound level *3 220 V/240 V dB(A) 42/43 47/48 Connectable outdoor units *4 5 HP and above 8 HP and above 10 HP and above Operation range Cooling 19 to 43°C (Fan mode operation between 15 and 19°C) Heating -5 to 15°C Cooling 13 to 25°C Range of the discharge temperature *5 Heating 18 to 30°C Notes: *1. Specifications are based on the following conditions: • Cooling: Outdoor temp. of 33°CDB, 28°CWB (68% RH), and discharge temp. of 18°CDB. • Heating: Outdoor temp. 0°CDB, -2.9°CWB (50% RH), and discharge temp. of 25°CDB. • Equivalent reference piping length: 7.5 m (0 m horizontal) *2. An intake filter is not supplied, so be sure to install the optional long-life filter or high-efficiency filter. *3. Anechoic chamber conversion value, measured at a point 1.5 m downward from the unit centre. These values are normally somewhat higher during actual operation as a result of ambient conditions. *4. It is possible to connect to the outdoor unit if the total capacity of the indoor units is 50% to 100% of the capacity index of the outdoor unit. *5. Local setting mode is not displayed on the remote controller. • This equipment cannot be incorporated into the remote group control of the VRV system. Options 232 sretliF MODEL FXMQ125MFV1 FXMQ200MFV1 FXMQ250MFV1 Operation remote controller BRC1H63W(K) / BRC1E63 / BRC2E61 DTP401A61 DTP401A62 DCS302CA61 DCS301BA61 DST301BA61 KRP4AA51 lortnoc/noitarepO This unit is intended for the treatment of outdoor air only. Not to be used for maintaining indoor air temperature. Be sure that the discharge airflow will not blow on people directly. Group control of the product and standard indoor units is not supported. A separate remote controller should be connected to individual unit. If the unit is utilised to operate 24 hours a day, maintenance (part replacement, etc.) must be performed periodically. Temperature setting and Power Proportional Distribution (PPD) are not possible even if the intelligent Touch Controller or the intelligent Touch Manager is installed. The remote controller wired to the outdoor-air processing unit must not be set as the master remote controller. Otherwise, when set to “Auto,” the operation mode will switch according to the outdoor air conditions, regardless of the indoor temperature. Central remote controller Unified ON/OFF controller Schedule timer Wiring adaptor for electrical appendices (2) Long-life replacement filter KAF371N140 KAF371N280 Colourimetric method 65% KAF372M140 KAF372M280 High-efficiency filter Colourimetric method 90% KAF373M140 KAF373M280 Filter chamber * KDJ3705L140 KDJ3705L280 Streamer duct chamber BDEZ500A140VE BDEZ500A510VE Drain pump kit KDU30L250VE Adaptor for wiring KRP1B61 Notes: * Filter chamber has a suction-type flange. (Main unit does not.) • Dimensions and weight of the equipment may vary depending on the options used. • Some options may not be usable due to the equipment installation conditions, so please confirm prior to ordering. • Some options may not be used in combination. • Operating sound may increase somewhat depending on the options used. tnempiuqE tnemtaerT riA Air Treatment Equipment Simple touch controller AC adaptor for simple touch controller FACING PAGE — PDF page 232 Air Treatment Equipment Outdoor-Air Processing Unit (Discharge Air Temperature Control Type) FXMQ-MF Series Combine fresh air treatment and air conditioning, supplied from a single system. Fresh air treatment and air conditioning can be Lineup achieved with a single system. VRV indoor units Model Name FXMQ125MFV1 FXMQ200MFV1 FXMQ250MFV1 for air conditioning and an outdoor-air Capacity index 125 200 250 processing unit can be connected to the same refrigerant line. Airflow rate 1,080 m3/h 1,680 m3/h 2,100 m3/h VRV Outdoor Units Connection Conditions Outdoor-Air Processing Unit • Outdoor-air processing units can be used without indoor units. The total connection capacity index must be 50% to Indoor Unit Indoor Unit 100% of the capacity index of the outdoor units. • When outdoor-air processing units and standard indoor units are combined, the total connection capacity index of the outdoor-air processing units must not exceed 30% of the capacity index of the outdoor units. Because connection is possible depending on conditions even Air Outdoor when the capacity index of outdoor-air processing units Conditioning Air Supply exceeds 30% of the capacity index of the outdoor units, contact your local distributor. Outdoor-air processing / Discharge air temperature control The unit supplies outdoor fresh air controlling discharge air temperature from the unit. Outdoor-Air Processing Unit Outdoor Air Supply Air (Discharge Air) * The default setting of the discharge air temperature is 18°C for cooling operation, and 25°C for heating operation. * While in unit protection mode and depending on outdoor air Discharge conditions, discharge air temperature may not be at the set temperature. Air Temperature * The fan stops in defrosting, oil returning and hot start operations Heat Exchanger due to mechanical protection control. Operation range Applicable to outdoor air temperature range from –5 to 43°C. Outdoor air temperature (°CDB) 32 In cooling operation, 19 to 43°C is adoptable. 100% 9 H R 0 u e % m lat id R iv i e e t l y ative Humidity Outdoor Air (° T C e W m B p ) erature S O up p p e o ra r t t i e o d n C R o a o n l g in e g Su O p p p e o ra rt t e io d n H R e a a n ti g n e g Op F e a ra n tion 30% Relative Humidity 20% H u R m el i a d t i i t v y e Notes: 2 1 . . T T p h h ip e e i n s o y g p s e t le e r n a m g t i t w o h n i : l l 7 r a n .5 n o g t m e o , p s H h e e o r i a w g t h e n t i i n d n i f f t a f h e n e r e m g n r o a c d e p : e h 0 w i s m h u . e n n d t e h r e t h o e u t f d o o ll o o r w a in ir g t e co m n p d e i r t a io t n u s r . e E i q s u 5 i ° v C a l o e r n t below. –5 15 19 (33.5) 43 231
