FXUQ71AVEB

Notes: Specifications are based on the following conditions; • Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Heating: Indoor temp.: 20°CDB, Outdoor temp.: 7°CDB, 6°CWB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Capacity of indoor unit is only for reference. Actual capacity of indoor unit is based on the total capacity index. (See Engineering Data Book for details.) • Sound level: Anechoic chamber conversion value, measured at a point 1 m in front of the unit and 1 m downward. During actual operation, these values are normally somewhat higher as a result of ambient conditions 212 stinU roodnI

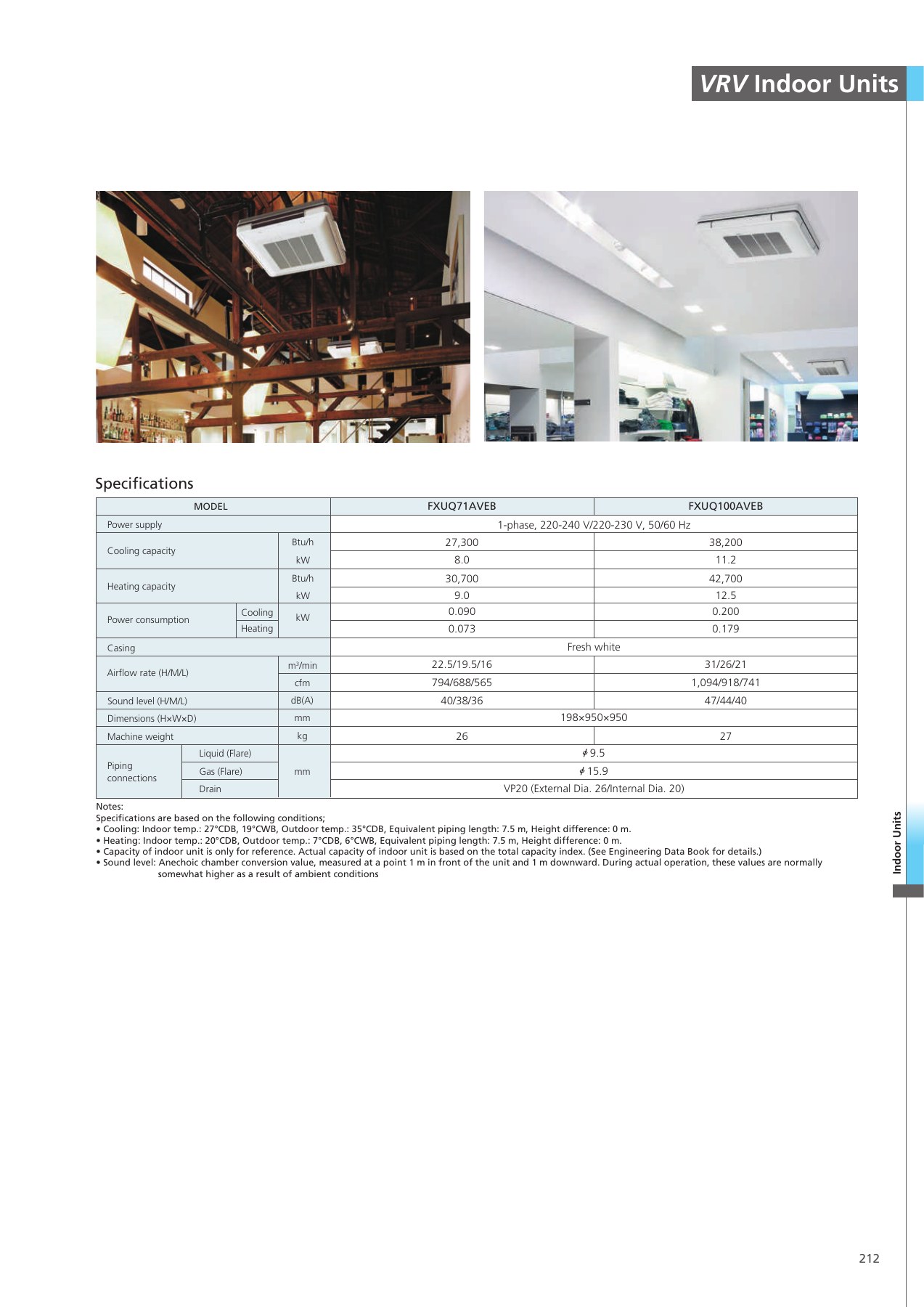

PDF page 213 VRV Indoor Units Specifications MODEL FXUQ71AVEB FXUQ100AVEB Power supply 1-phase, 220-240 V/220-230 V, 50/60 Hz Btu/h 27,300 38,200 Cooling capacity kW 8.0 11.2 Btu/h 30,700 42,700 Heating capacity kW 9.0 12.5 Cooling 0.090 0.200 Power consumption kW Heating 0.073 0.179 Casing Fresh white m3/min 22.5/19.5/16 31/26/21 Airflow rate (H/M/L) cfm 794/688/565 1,094/918/741 Sound level (H/M/L) dB(A) 40/38/36 47/44/40 Dimensions (H×W×D) mm 198×950×950 Machine weight kg 26 27 Liquid (Flare) 9.5 Piping Gas (Flare) mm 15.9 connections Drain VP20 (External Dia. 26/Internal Dia. 20) Notes: Specifications are based on the following conditions; • Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Heating: Indoor temp.: 20°CDB, Outdoor temp.: 7°CDB, 6°CWB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Capacity of indoor unit is only for reference. Actual capacity of indoor unit is based on the total capacity index. (See Engineering Data Book for details.) • Sound level: Anechoic chamber conversion value, measured at a point 1 m in front of the unit and 1 m downward. During actual operation, these values are normally somewhat higher as a result of ambient conditions 212 stinU roodnI FACING PAGE — PDF page 212 4-way Flow Ceiling Suspended Type FXUQ-A Slim and stylish design, optimum air distribution, installation without ceiling cavity Slim and stylish design • Unit body and suction panel have round shapes that form a slim design, that fits various locations such as the ceilings without cavity. • Flaps close automatically when the unit stops, which gives a simple appearance. • All models have a unified slim height of 198 mm that gives a similar impression even when models with different capacities are installed in the same area. Comfort • Airflow direction adjustment can be individually adjusted for each air discharge outlet to deliver optimal air distribution. 5 directions of airflow and auto-swing can be selected with BRC1E63 or BRC1H63W(K). • Control of the airflow rate can be selected from 3-step control. Auto airflow rate control can be selected with wired remote controller. Flexible installation • Drain pump is equipped as a standard accessory with 600 mm lift. • Depending on installation site requirements or room conditions, 2-way, 3-way and 4-way discharge patterns are available. 4-way flow 3-way flow L-shaped 2-way flow Cleanliness Silver ion anti-bacterial drain pan • Prevents the growth of slime, bacteria, and mould that cause odours and clogging. * Drain pan should be changed once every two to three years. Filter has anti-mould and antibacterial treatment 211
