FXDQ40NDVE

Notes: Specifications are based on the following conditions; • Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Heating: Indoor temp.: 20°CDB, Outdoor temp.: 7°CDB, 6°CWB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Capacity of indoor unit is only for reference. Actual capacity of indoor unit is based on the total capacity index. (See Engineering Data Book for details.) • Sound level: Anechoic chamber conversion value, measured at a point 1.5 m downward from the unit centre. During actual operation, these values are normally somewhat higher as a result of ambient conditions. *1: Values are based on the following conditions: FXDQ-PD: external static pressure of 10 Pa; FXDQ-ND: external static pressure of 15 Pa. *2: External static pressure is changeable to set by the remote controller. This pressure means "High static pressure - Standard". (Factory setting is 10 Pa for FXDQ-PD models and 15 Pa for FXDQ-ND models.) *3: The values of operation sound level represent those for rear-suction operation. Sound level values for bottom-suction operation can be obtained by adding 5 dB(A). 203

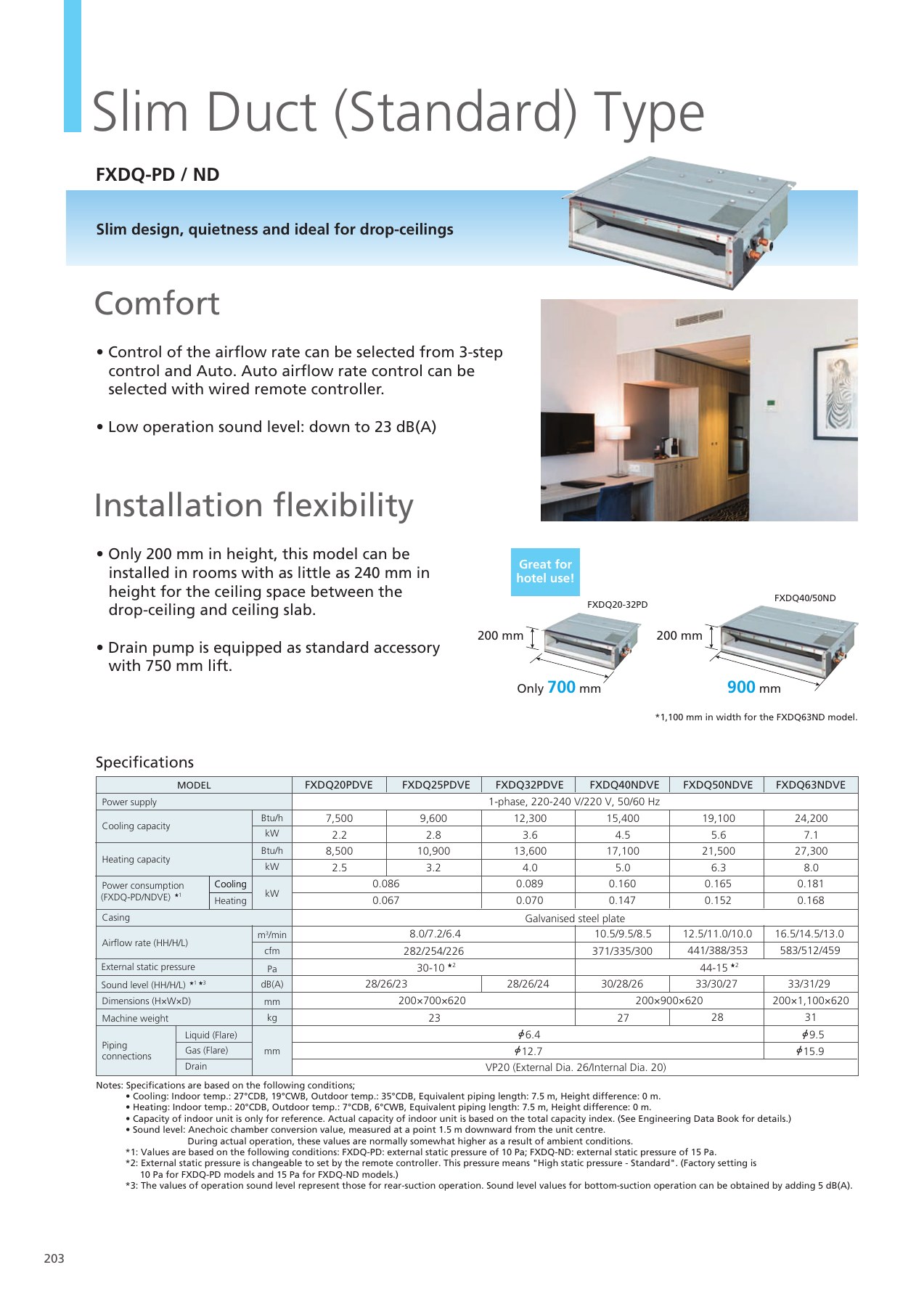

PDF page 204 Slim Duct (Standard) Type FXDQ-PD / ND Slim design, quietness and ideal for drop-ceilings Comfort • Control of the airflow rate can be selected from 3-step control and Auto. Auto airflow rate control can be selected with wired remote controller. • Low operation sound level: down to 23 dB(A) Installation flexibility • Only 200 mm in height, this model can be Great for installed in rooms with as little as 240 mm in hotel use! height for the ceiling space between the FXDQ40/50ND drop-ceiling and ceiling slab. FXDQ20-32PD 200 mm 200 mm • Drain pump is equipped as standard accessory with 750 mm lift. Only 700 mm 900 mm *1,100 mm in width for the FXDQ63ND model. Specifications MODEL FXDQ20PDVE FXDQ25PDVE FXDQ32PDVE FXDQ40NDVE FXDQ50NDVE FXDQ63NDVE Power supply 1-phase, 220-240 V/220 V, 50/60 Hz Btu/h 7,500 9,600 12,300 15,400 19,100 24,200 Cooling capacity kW 2.2 2.8 3.6 4.5 5.6 7.1 Btu/h 8,500 10,900 13,600 17,100 21,500 27,300 Heating capacity kW 2.5 3.2 4.0 5.0 6.3 8.0 Power consumption CCoooolliinngg 0.086 0.089 0.160 0.165 0.181 (FXDQ-PD/NDVE) 1 Heating kW 0.067 0.070 0.147 0.152 0.168 Casing Galvanised steel plate m3/min 8.0/7.2/6.4 10.5/9.5/8.5 12.5/11.0/10.0 16.5/14.5/13.0 Airflow rate (HH/H/L) cfm 282/254/226 371/335/300 441/388/353 583/512/459 External static pressure Pa 30-10 2 44-15 2 Sound level (HH/H/L) 1 3 dB(A) 28/26/23 28/26/24 30/28/26 33/30/27 33/31/29 Dimensions (H×W×D) mm 200×700×620 200×900×620 200×1,100×620 Machine weight kg 23 27 28 31 Liquid (Flare) 6.4 9.5 Piping Gas (Flare) mm 12.7 15.9 connections Drain VP20 (External Dia. 26/Internal Dia. 20) Notes: Specifications are based on the following conditions; • Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Heating: Indoor temp.: 20°CDB, Outdoor temp.: 7°CDB, 6°CWB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Capacity of indoor unit is only for reference. Actual capacity of indoor unit is based on the total capacity index. (See Engineering Data Book for details.) • Sound level: Anechoic chamber conversion value, measured at a point 1.5 m downward from the unit centre. During actual operation, these values are normally somewhat higher as a result of ambient conditions. *1: Values are based on the following conditions: FXDQ-PD: external static pressure of 10 Pa; FXDQ-ND: external static pressure of 15 Pa. *2: External static pressure is changeable to set by the remote controller. This pressure means "High static pressure - Standard". (Factory setting is 10 Pa for FXDQ-PD models and 15 Pa for FXDQ-ND models.) *3: The values of operation sound level represent those for rear-suction operation. Sound level values for bottom-suction operation can be obtained by adding 5 dB(A). 203 FACING PAGE — PDF page 205 Slim Duct (Compact) Type FXDQ-SP Slim and compact design for easy and flexible installation Installation flexibility • Slim and compact design with a height of only 200 mm and the depth of only 450 mm which is suitable to install in limited spaces. 200 mm Great for residential use Only 450 mm 700 mm* *For FXDQ20-32SP models 240 mm and above 700 mm Ceiling Side view Top view Specifications MODEL FXDQ20SPV1 FXDQ25SPV1 FXDQ32SPV1 FXDQ40SPV1 FXDQ50SPV1 FXDQ63SPV1 Power supply 1-phase, 220-240 V, 50 Hz Btu/h 7,500 9,600 12,300 15,400 19,100 24,200 Cooling capacity kW 2.2 2.8 3.6 4.5 5.6 7.1 Btu/h 8,500 10,900 13,600 17,100 21,500 27,300 Heating capacity kW 2.5 3.2 4.0 5.0 6.3 8.0 Cooling 0.072 0.075 0.078 0.180 0.196 Power consumption 1 kW Heating 0.056 0.059 0.062 0.152 0.168 Casing Galvanised steel plate m3/min 8.7/7.6/6.5 9.0/8.0/7.0 10.0/9.0/8.0 15.0/13.0/10.5 20.0/16.0/12.5 Airflow rate (HH/H/L) cfm 307/268/229 318/282/247 353/318/282 530/459/371 706/565/441 External static pressure Pa 30-10 50-20 40-20 Sound level (HH/H/L) 1 3 dB(A) 33/31/29 34/32/30 35/33/31 37/35/33 Dimensions (H×W×D) mm 200×700×450 200×900×450 200×1,100×450 Machine weight kg 17 20 23 Liquid (Flare) 6.4 9.5 Piping connections Gas (Flare) mm 12.7 15.9 Drain VP20 (External Dia. 26/Internal Dia. 20) Notes: Specifications are based on the following conditions; • Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping length: 5.0 m, Height difference: 0 m. • Heating: Indoor temp.: 20°CDB, Outdoor temp.: 7°CDB, 6°CWB, Equivalent piping length: 5.0 m, Height difference: 0 m. • Capacity of indoor unit is only for reference. Actual capacity of indoor unit is based on the total capacity index. (See Engineering Data Book for details.) • Sound level: Anechoic chamber conversion value, measured at a point 1.5 m downward from the unit centre. During actual operation, these values are normally somewhat higher as a result of ambient conditions. *1: Values are based on the following conditions: FXDQ20-32SP: external static pressure of 10 Pa; FXDQ40-63SP: external static pressure of 20 Pa. *2: External static pressure is changeable to set by the remote controller. This pressure means “High static pressure - Standard”. (Factory setting is 10 Pa for FXDQ20-32SP models and 20 Pa for FXDQ40-63SP models.) *3: The values of operation sound level represent those for rear-suction operation. Sound level values for bottom-suction operation can be obtained by adding 5 dB(A). 204 mm 006 VRV Indoor Units 200 mm 450 mm • Drain pump is equipped as standard accessory with 750 mm lift. 2 2 2 stinU roodnI
