FXFRQ40AVM

Notes: Specifications are based on the following conditions; • Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Heating: Indoor temp.: 20°CDB, Outdoor temp.: 7°CDB, 6°CWB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Capacity of indoor unit is only for reference. Actual capacity of indoor unit is based on the total capacity index. (See Engineering Data Book for details.) • Sound level: Anechoic chamber conversion value, measured at a point 1.5 m downward from the unit centre. During actual operation, these values are normally somewhat higher as a result of ambient conditions. Panel (Option) Function List Model BYCQ125EAF (Fresh White ) / BYCQ125EAK (Black) Wired remote controller BRC1H63W(K) Standard panel Dimensions(H×W×D) mm 50×950×950 Streamer function unit Weight kg 5.5 Individual airflow direction control Model BYCQ125EAPF (Fresh White) Switchable 5 step fan speed Designer panel Dimensions(H×W×D) mm 97×950×950 Auto airflow rate Weight kg 6.5 Auto swing Auto Model BYCQ125EBSF (Fresh White) High ceiling application grille Dimensions(H×W×D) mm 105×950×950 panel Weight kg 8 stinU roodnI 188

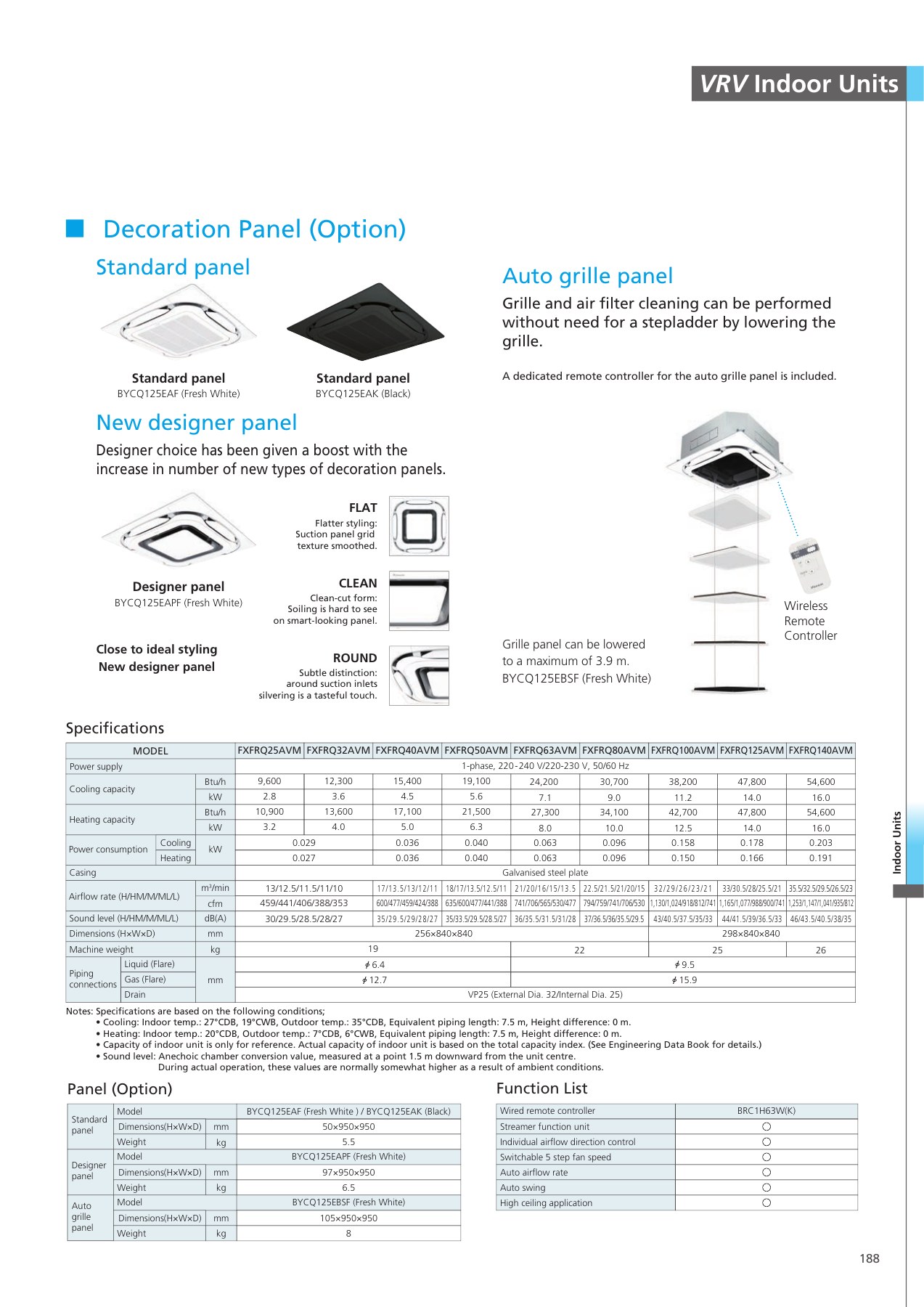

PDF page 189 VRV Indoor Units Decoration Panel (Option) Standard panel Auto grille panel Grille and air filter cleaning can be performed without need for a stepladder by lowering the grille. Standard panel Standard panel A dedicated remote controller for the auto grille panel is included. BYCQ125EAF (Fresh White) BYCQ125EAK (Black) New designer panel Designer choice has been given a boost with the increase in number of new types of decoration panels. FLAT Flatter styling: Suction panel grid texture smoothed. Designer panel CLEAN BYCQ125EAPF (Fresh White) Soilin C g l e is a h n a -c r u d t t f o o r s m ee : Wireless on smart-looking panel. Remote Controller Grille panel can be lowered Close to ideal styling ROUND to a maximum of 3.9 m. New designer panel Subtle distinction: BYCQ125EBSF (Fresh White) around suction inlets silvering is a tasteful touch. Specifications MODEL FXFRQ25AVM FXFRQ32AVM FXFRQ40AVM FXFRQ50AVM FXFRQ63AVM FXFRQ80AVM FXFRQ100AVM FXFRQ125AVM FXFRQ140AVM Power supply 1-phase, 220-240 V/220-230 V, 50/60 Hz Btu/h 9,600 12,300 15,400 19,100 24,200 30,700 38,200 47,800 54,600 Cooling capacity kW 2.8 3.6 4.5 5.6 7.1 9.0 11.2 14.0 16.0 Btu/h 10,900 13,600 17,100 21,500 27,300 34,100 42,700 47,800 54,600 Heating capacity kW 3.2 4.0 5.0 6.3 8.0 10.0 12.5 14.0 16.0 Cooling 0.029 0.036 0.040 0.063 0.096 0.158 0.178 0.203 Power consumption kW Heating 0.027 0.036 0.040 0.063 0.096 0.150 0.166 0.191 Casing Galvanised steel plate m3/min 13/12.5/11.5/11/10 17/13.5/13/12/11 18/17/13.5/12.5/11 21/20/16/15/13.5 22.5/21.5/21/20/15 32/29/26/23/21 33/30.5/28/25.5/21 35.5/32.5/29.5/26.5/23 Airflow rate (H/HM/M/ML/L) cfm 459/441/406/388/353 600/477/459/424/388 635/600/477/441/388 741/706/565/530/477 794/759/741/706/530 1,130/1,024/918/812/7411,165/1,077/988/900/7411,253/1,147/1,041/935/812 Sound level (H/HM/M/ML/L) dB(A) 30/29.5/28.5/28/27 35/29.5/29/28/27 35/33.5/29.5/28.5/27 36/35.5/31.5/31/28 37/36.5/36/35.5/29.5 43/40.5/37.5/35/33 44/41.5/39/36.5/33 46/43.5/40.5/38/35 Dimensions (H×W×D) mm 256×840×840 298×840×840 Machine weight kg 19 22 25 26 Liquid (Flare) 6.4 9.5 Piping connections Gas (Flare) mm 12.7 15.9 Drain VP25 (External Dia. 32/Internal Dia. 25) Notes: Specifications are based on the following conditions; • Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Heating: Indoor temp.: 20°CDB, Outdoor temp.: 7°CDB, 6°CWB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Capacity of indoor unit is only for reference. Actual capacity of indoor unit is based on the total capacity index. (See Engineering Data Book for details.) • Sound level: Anechoic chamber conversion value, measured at a point 1.5 m downward from the unit centre. During actual operation, these values are normally somewhat higher as a result of ambient conditions. Panel (Option) Function List Model BYCQ125EAF (Fresh White ) / BYCQ125EAK (Black) Wired remote controller BRC1H63W(K) Standard panel Dimensions(H×W×D) mm 50×950×950 Streamer function unit Weight kg 5.5 Individual airflow direction control Model BYCQ125EAPF (Fresh White) Switchable 5 step fan speed Designer panel Dimensions(H×W×D) mm 97×950×950 Auto airflow rate Weight kg 6.5 Auto swing Auto Model BYCQ125EBSF (Fresh White) High ceiling application grille Dimensions(H×W×D) mm 105×950×950 panel Weight kg 8 stinU roodnI 188 FACING PAGE — PDF page 188 Round Flow Cassette with Streamer Type Individual airflow direction control Comfortable air conditioning for all room layouts and conditions Easy setting is possible with a wired remote controller Airflow direction can be individually adjusted for each air discharge outlet to deliver optimal air distribution. Individual airflow settings Position 0 No individual setting No individual setting (Fixed airflow to (Auto airflow) (Auto airflow) highest position) Position 0 (Highest point) Position 1 Position 2 Position 3 Swing Position 4 Position 4 (Lowest point) (Up/down) (Fixed airflow to the lowest position) Swing Individual settings are possible as stated above. Swing No individual setting (Auto airflow) Swing is set for meetings near Position 0 the windows. The airflow is at the Comfort is provided to the entire room highest setting Large blow is (Position 0) for people by individual setting corresponding to 4-way provided to who dislike air blowing meeting areas directly on them. flow conditions. near windows. Blow reduced for areas No individual setting (Auto airflow) with few people. Other functions Quick and easy installation No individual setting Installable in tight ceiling spaces 850 mm (Auto airflow) 175 mm Min. of 261 mm* ceiling space when using standard panel. * For FXFRQ25-80A models. Drain pump is equipped as standard accessory with 850 mm lift. Easy maintenance Just open the suction grille! Drain pan and drain water check Drain outlet The condition of the drain pan and drain water can be (with rubber plug) checked by removing the suction grille and drain plug. Cleanliness Silver ion anti-bacterial drain pan Prevents the growth of slime, bacteria, and mould that cause odours and clogging. * Drain pan should be changed once every two to three years. Filter has anti-mould and antibacterial treatment BAF552A160 High Performance Prefilter (MERV 8) (Option) See page 296 This filter can catch more harmful substances in the air such as PM2.5. 187
