FXDBQ40AVM

Notes: Specifications are based on the following conditions; • Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Heating: Indoor temp.: 20°CDB, Outdoor temp.: 7°CDB, 6°CWB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Sound level: Anechoic chamber conversion value, measured at a point 1.5 m downward from the unit centre. During actual operation, these values are normally somewhat higher as a result of ambient conditions. *1: Power consumption values are based on conditions of rated external static pressure. *2: External static pressure is changeable to set by the remote controller. These values indicate the lowest and highest possible static pressures. The rated static pressure is 15 Pa. 202 stinU roodnI

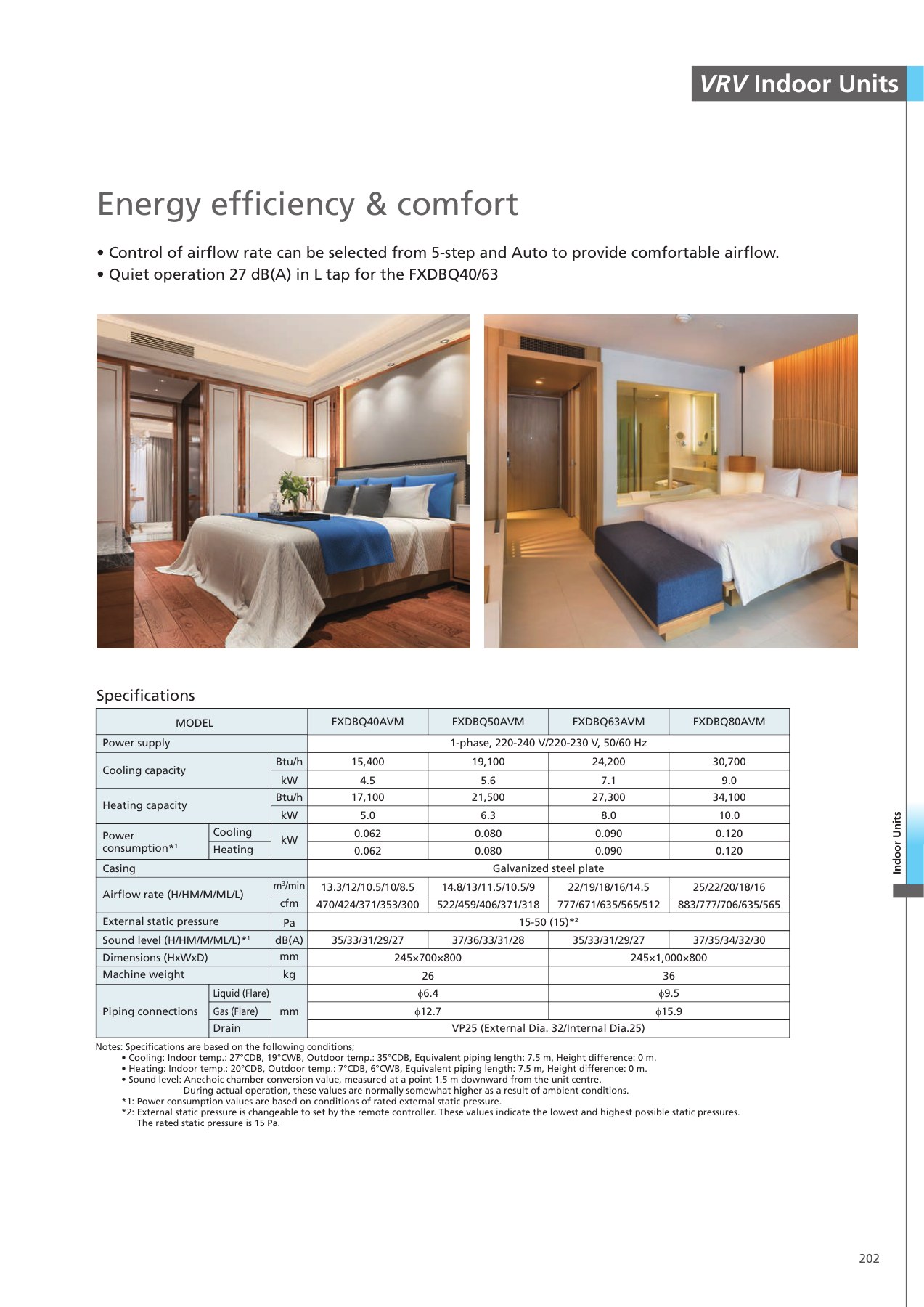

PDF page 203 VRV Indoor Units Energy efficiency & comfort • Control of airflow rate can be selected from 5-step and Auto to provide comfortable airflow. • Quiet operation 27 dB(A) in L tap for the FXDBQ40/63 Specifications MODEL FXDBQ40AVM FXDBQ50AVM FXDBQ63AVM FXDBQ80AVM Power supply 1-phase, 220-240 V/220-230 V, 50/60 Hz Btu/h 15,400 19,100 24,200 30,700 Cooling capacity kW 4.5 5.6 7.1 9.0 Btu/h 17,100 21,500 27,300 34,100 Heating capacity kW 5.0 6.3 8.0 10.0 Power Cooling kW 0.062 0.080 0.090 0.120 consumption*1 Heating 0.062 0.080 0.090 0.120 Casing Galvanized steel plate m3/min 13.3/12/10.5/10/8.5 14.8/13/11.5/10.5/9 22/19/18/16/14.5 25/22/20/18/16 Airflow rate (H/HM/M/ML/L) cfm 470/424/371/353/300 522/459/406/371/318 777/671/635/565/512 883/777/706/635/565 External static pressure Pa 15-50 (15)*2 Sound level (H/HM/M/ML/L)*1 dB(A) 35/33/31/29/27 37/36/33/31/28 35/33/31/29/27 37/35/34/32/30 Dimensions (HxWxD) mm 245×700×800 245×1,000×800 Machine weight kg 26 36 Liquid (Flare) φ6.4 φ9.5 Piping connections Gas (Flare) mm φ12.7 φ15.9 Drain VP25 (External Dia. 32/Internal Dia.25) Notes: Specifications are based on the following conditions; • Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Heating: Indoor temp.: 20°CDB, Outdoor temp.: 7°CDB, 6°CWB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Sound level: Anechoic chamber conversion value, measured at a point 1.5 m downward from the unit centre. During actual operation, these values are normally somewhat higher as a result of ambient conditions. *1: Power consumption values are based on conditions of rated external static pressure. *2: External static pressure is changeable to set by the remote controller. These values indicate the lowest and highest possible static pressures. The rated static pressure is 15 Pa. 202 stinU roodnI FACING PAGE — PDF page 202 Bedroom Duct Type FXDBQ-A Suitable for close living spaces such as hotels and condominiums Installation flexibility Easy maintenance Only 700 mm width 1-stop service space • Installation is possible even in narrow entrance • Requires minimum spaces for installation and ways at hotels and condominiums. maintenance can be done from only one inspection access. Suitable for narrow entrance way Ceiling 700 mm Require installation space AIR only 20 mm on top and bottom 800 mm 245 mm space to *1,000 mm in width for the FXDBQ63 / 80 model. ceiling Thin design Mirror piping Require limited space for installation and service • Allows pipe installation from either side of indoor unit, simplified design process Easier and faster cleaning and installation. • In conventional model, the parts need to be removed one by one in order. However in new model, the integrated fan motor can be removed and reinstalled in one time. For left side connection For right side connection Ready to Clean! Easy access to control box from bottom side • All wiring is simplified to control box, so maintenance can be done from bottom side. Easy access to Control box 201
