FXCQ125BVM

Notes: Specifications are based on the following conditions; • Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Heating: Indoor temp.: 20°CDB, Outdoor temp.: 7°CDB, 6°CWB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Capacity of indoor unit is only for reference. Actual capacity of indoor unit is based on the total capacity index. (See Engineering Data Book for details.) • Sound level: Anechoic chamber conversion value, measured at a point 1.5 m downward from the unit centre. 196 During actual operation, these values are normally somewhat higher as a result of ambient conditions. stinU roodnI Cleanliness Streamer filter clean unit (Option) See page 7 - 8 Irradiates Streamer when the fan and air conditioning operation are stopped. Streamer fumigates the cabin and sterilizes the filter. Remarks: 1) Only the stylish remote controller BRC1H63W(K) can be connected for ON/OFF operation of the streamer. 2) The Streamer function operates only when the fan and air conditioning operation are stopped. BAPWS55A61 The maximum operation of Streamer is 180 minutes per day.

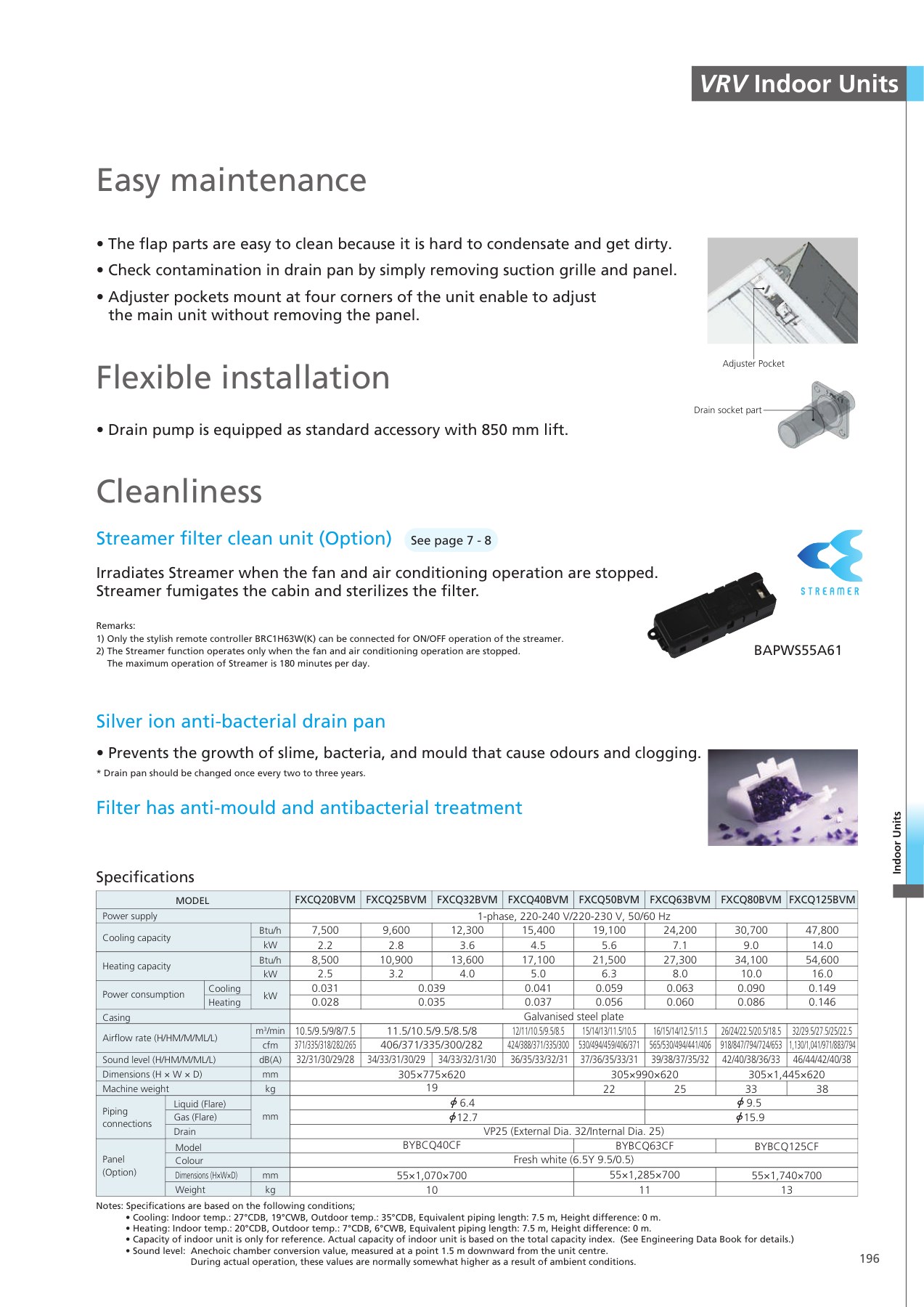

PDF page 197 VRV Indoor Units Easy maintenance • The flap parts are easy to clean because it is hard to condensate and get dirty. • Check contamination in drain pan by simply removing suction grille and panel. • Adjuster pockets mount at four corners of the unit enable to adjust the main unit without removing the panel. Flexible installation Adjuster Pocket Drain socket part • Drain pump is equipped as standard accessory with 850 mm lift. Silver ion anti-bacterial drain pan • Prevents the growth of slime, bacteria, and mould that cause odours and clogging. * Drain pan should be changed once every two to three years. Filter has anti-mould and antibacterial treatment Specifications MODEL FXCQ20BVM FXCQ25BVM FXCQ32BVM FXCQ40BVM FXCQ50BVM FXCQ63BVM FXCQ80BVM FXCQ125BVM Power supply 1-phase, 220-240 V/220-230 V, 50/60 Hz Btu/h 7,500 9,600 12,300 15,400 19,100 24,200 30,700 47,800 Cooling capacity kW 2.2 2.8 3.6 4.5 5.6 7.1 9.0 14.0 Btu/h 8,500 10,900 13,600 17,100 21,500 27,300 34,100 54,600 Heating capacity kW 2.5 3.2 4.0 5.0 6.3 8.0 10.0 16.0 Cooling 0.031 0.039 0.041 0.059 0.063 0.090 0.149 Power consumption kW Heating 0.028 0.035 0.037 0.056 0.060 0.086 0.146 Casing Galvanised steel plate m3/min 10.5/9.5/9/8/7.5 11.5/10.5/9.5/8.5/8 12/11/10.5/9.5/8.5 15/14/13/11.5/10.5 16/15/14/12.5/11.5 26/24/22.5/20.5/18.5 32/29.5/27.5/25/22.5 Airflow rate (H/HM/M/ML/L) cfm 371/335/318/282/265 406/371/335/300/282 424/388/371/335/300 530/494/459/406/371 565/530/494/441/406 918/847/794/724/653 1,130/1,041/971/883/794 Sound level (H/HM/M/ML/L) dB(A) 32/31/30/29/28 34/33/31/30/29 34/33/32/31/30 36/35/33/32/31 37/36/35/33/31 39/38/37/35/32 42/40/38/36/33 46/44/42/40/38 Dimensions (H × W × D) mm 305×775×620 305×990×620 305×1,445×620 Machine weight kg 19 22 25 33 38 Liquid (Flare) 6.4 9.5 Piping Gas (Flare) mm 12.7 15.9 connections Drain VP25 (External Dia. 32/Internal Dia. 25) Model BYBCQ40CF BYBCQ63CF BYBCQ125CF Panel Colour Fresh white (6.5Y 9.5/0.5) (Option) Dimensions (H×W×D) mm 55×1,070×700 55×1,285×700 55×1,740×700 Weight kg 10 11 13 Notes: Specifications are based on the following conditions; • Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Heating: Indoor temp.: 20°CDB, Outdoor temp.: 7°CDB, 6°CWB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Capacity of indoor unit is only for reference. Actual capacity of indoor unit is based on the total capacity index. (See Engineering Data Book for details.) • Sound level: Anechoic chamber conversion value, measured at a point 1.5 m downward from the unit centre. 196 During actual operation, these values are normally somewhat higher as a result of ambient conditions. stinU roodnI Cleanliness Streamer filter clean unit (Option) See page 7 - 8 Irradiates Streamer when the fan and air conditioning operation are stopped. Streamer fumigates the cabin and sterilizes the filter. Remarks: 1) Only the stylish remote controller BRC1H63W(K) can be connected for ON/OFF operation of the streamer. 2) The Streamer function operates only when the fan and air conditioning operation are stopped. BAPWS55A61 The maximum operation of Streamer is 180 minutes per day. FACING PAGE — PDF page 196 FXCQ-B Thin, lightweight, and easy to install in narrow ceiling spaces Stylish design Comfort Individual airflow direction control* No individual setting (Auto airflow) Position Position 0 (Highest point) Position 1 Position 2 Position 3 Position 4 (Lowest point) Swing 5-step & auto airflow control • Control of airflow rate has been improved from 3-step to 5-step. Auto airflow rate is newly available. Suitable for high ceilings • Even in spaces with high ceilings maximum 3.5 m, a comfortable airflow is carried down to the floor level. Energy saving • Power consumption is significantly reduced by specially developed small tube 95 heat exchanger and DC fan motor. 0 20 25/32 40 50 63 80 125 195 )W( noitpmusnoc rewoP Double Flow Cassette Type • Stylish unit blends easily with any interior. • The flat flaps close entirely when the unit is not operating and there are no air intake grilles visible. • Depth of all units is 620 mm, ideal for narrow spaces • Airflow direction can be individually adjusted for each air discharge outlet to Individual airflow settings deliver optimal air distribution. *Applicable when wired remote controller BRC1E63 or BRC1H63W(K) is used. Individual settings are possible as stated above. Position 0 Swing (Fixed airflow to highest position) (Up / Down) 300 Power consumption comparison (Cooling) 278 216 200 157 149 132 132 100 81 90 59 63 31 39 41 Model class Conventional model: FXCQ-M New model: FXCQ-B
