FXAQ100BVM

Note: Specifications are based on the following conditions; • Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Heating: Indoor temp.: 20°CDB, Outdoor temp.: 7°CDB, 6°CWB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Capacity of indoor unit is only for reference. Actual capacity of indoor unit is based on the total capacity index. (See Engineering Data Book for details) 216 • Sound level: Anechoic chamber conversion value, measured at a point 1 m in front of the unit and 1 m downward. During actual operation, these values are normally somewhat higher as a result of ambient conditions. stinU roodnI Bubble controlling technology New motor-operated valve features an integrated rectifying plate that stabilizes refrigerant flow by suppressing turbulence and bubbles, resulting in smoother operation and reduced flow noise.

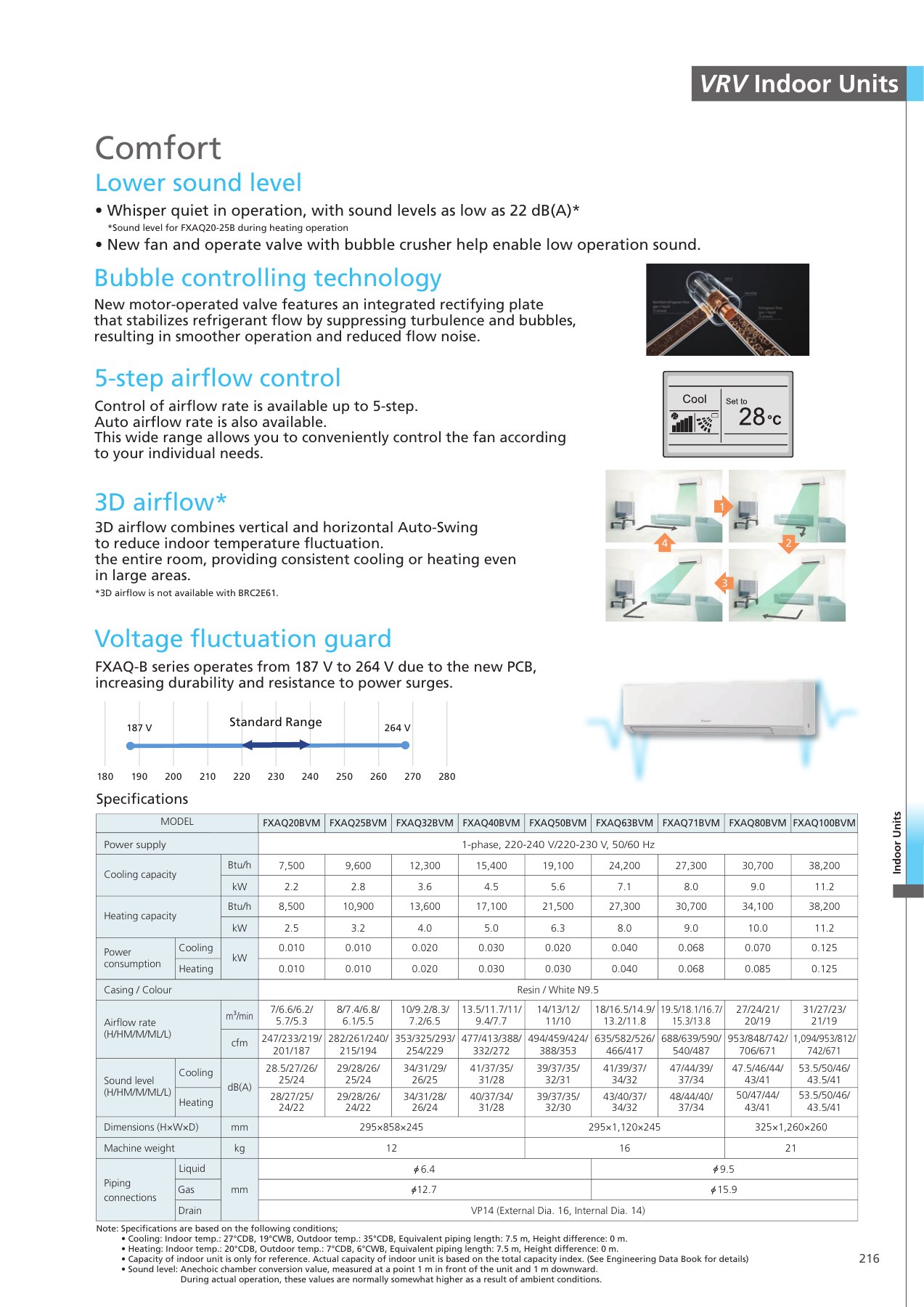

PDF page 217 VRV Indoor Units Comfort Lower sound level • Whisper quiet in operation, with sound levels as low as 22 dB(A)* *Sound level for FXAQ20-25B during heating operation • New fan and operate valve with bubble crusher help enable low operation sound. 5-step airflow control Control of airflow rate is available up to 5-step. Auto airflow rate is also available. This wide range allows you to conveniently control the fan according to your individual needs. 3D airflow* 1 3D airflow combines vertical and horizontal Auto-Swing to reduce indoor temperature fluctuation. 4 2 the entire room, providing consistent cooling or heating even in large areas. 3 *3D airflow is not available with BRC2E61. Voltage fluctuation guard FXAQ-B series operates from 187 V to 264 V due to the new PCB, increasing durability and resistance to power surges. Standard Range 187 V 264 V 180 190 200 210 220 230 240 250 260 270 280 Specifications MODEL FXAQ20BVM FXAQ25BVM FXAQ32BVM FXAQ40BVM FXAQ50BVM FXAQ63BVM FXAQ71BVM FXAQ80BVM FXAQ100BVM Power supply 1-phase, 220-240 V/220-230 V, 50/60 Hz Btu/h 7,500 9,600 12,300 15,400 19,100 24,200 27,300 30,700 38,200 Cooling capacity kW 2.2 2.8 3.6 4.5 5.6 7.1 8.0 9.0 11.2 Btu/h 8,500 10,900 13,600 17,100 21,500 27,300 30,700 34,100 38,200 Heating capacity kW 2.5 3.2 4.0 5.0 6.3 8.0 9.0 10.0 11.2 Power Cooling 0.010 0.010 0.020 0.030 0.020 0.040 0.068 0.070 0.125 kW consumption Heating 0.010 0.010 0.020 0.030 0.030 0.040 0.068 0.085 0.125 Casing / Colour Resin / White N9.5 7/6.6/6.2/ 8/7.4/6.8/ 10/9.2/8.3/ 13.5/11.7/11/ 14/13/12/ 18/16.5/14.9/ 19.5/18.1/16.7/ 27/24/21/ 31/27/23/ m³/min Airflow rate 5.7/5.3 6.1/5.5 7.2/6.5 9.4/7.7 11/10 13.2/11.8 15.3/13.8 20/19 21/19 (H/HM/M/ML/L) cfm 247/233/219/ 282/261/240/ 353/325/293/ 477/413/388/ 494/459/424/ 635/582/526/ 688/639/590/ 953/848/742/ 1,094/953/812/ 201/187 215/194 254/229 332/272 388/353 466/417 540/487 706/671 742/671 Cooling 28.5/27/26/ 29/28/26/ 34/31/29/ 41/37/35/ 39/37/35/ 41/39/37/ 47/44/39/ 47.5/46/44/ 53.5/50/46/ Sound level 25/24 25/24 26/25 31/28 32/31 34/32 37/34 43/41 43.5/41 dB(A) (H/HM/M/ML/L) 28/27/25/ 29/28/26/ 34/31/28/ 40/37/34/ 39/37/35/ 43/40/37/ 48/44/40/ 50/47/44/ 53.5/50/46/ Heating 24/22 24/22 26/24 31/28 32/30 34/32 37/34 43/41 43.5/41 Dimensions (H×W×D) mm 295×858×245 295×1,120×245 325×1,260×260 Machine weight kg 12 16 21 Liquid 6.4 9.5 Piping Gas mm 12.7 15.9 connections Drain VP14 (External Dia. 16, Internal Dia. 14) Note: Specifications are based on the following conditions; • Cooling: Indoor temp.: 27°CDB, 19°CWB, Outdoor temp.: 35°CDB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Heating: Indoor temp.: 20°CDB, Outdoor temp.: 7°CDB, 6°CWB, Equivalent piping length: 7.5 m, Height difference: 0 m. • Capacity of indoor unit is only for reference. Actual capacity of indoor unit is based on the total capacity index. (See Engineering Data Book for details) 216 • Sound level: Anechoic chamber conversion value, measured at a point 1 m in front of the unit and 1 m downward. During actual operation, these values are normally somewhat higher as a result of ambient conditions. stinU roodnI Bubble controlling technology New motor-operated valve features an integrated rectifying plate that stabilizes refrigerant flow by suppressing turbulence and bubbles, resulting in smoother operation and reduced flow noise. FACING PAGE — PDF page 216 Wall Mounted Type FXAQ-B Slim and stylish flat panel design harmonised with your interior décor Slim and stylish design 21 mm slimmer Wide capacity lineup New 71/80/100 models provide greater capacity for large spaces. Energy savings New FXAQ-B provides greater energy saving due to the significantly lower power consumption. Power Consumption (Cooling) 140 120 100 80 60 40 20 0 20 25 32 40 50 63 71 80 100 Model Class Cleanliness See page 7 - 8 Streamer discharge attacks bacteria, mold and virus captured on the filter by irradiating them with an advanced plasma electric discharge. The streamer function operates automatically without light indication when the air conditioner is on and deactivates when the air conditioner is off. BAPWS57A61 Air quality filter (Enzyme blue / PM2.5) (Option) Combination of the Enzyme blue deodorizing filter and the PM2.5 dust collection filter Enzyme blue deodorizing filter traps fine particles, breaks down odors, and deactivates bacteria and viruses. PM2.5 filter removes inhalable particles such as dust, pollen, and mold (≥2.5 μm). PM2.5 215 )W( noitpmusnoC rewoP Power Consumption (Heating) 20 25 32 40 50 63 71 80 100 Model Class )W( noitpmusnoC rewoP ・ Slim and stylish flat panel design creates a graceful harmony that enhances any interior space. Conventional 266 mm NEW 245 mm FXAQ20-32A FXAQ20-32B 140 120 100 80 60 40 20 0 NEW NEW NEW NEW NEW NEW Current (FXAQ-A) New (FXAQ-B) Current (FXAQ-A) New (FXAQ-B) Streamer discharge unit (Option) Patented Streamer Technology decomposes and removes allergens
